S. No. | Description | Pack Size | Light | Medium | Heavy |
1 | 20 MM | 100 | 20 MM | 20 MM | 20 MM |
2 | 25 MM | 50 | 25 MM | 25 MM | 25 MM |
3 | 32 MM | 50 | 32 MM | 32 MM | 32 MM |
4 | 40 MM | 25 | 40 MM | 40 MM | 40 MM |
5 | 50 MM | 20 | 50 MM | 50 MM | 50 MM |

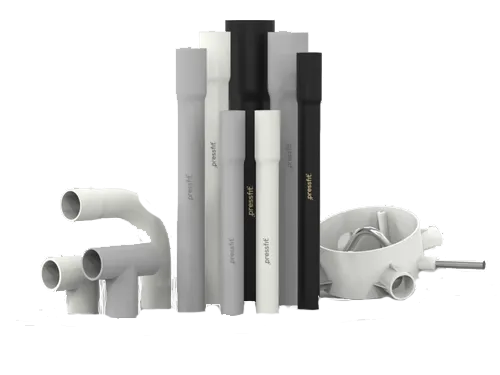

Champion PVC Conduits pipes are manufactured in accordance with Bureau of Indian standard specifications lSI 9537 (part-3) in the range of 14mm to 50mm with light, medium and heavy ranges. These pipes are available in various colours & grades like FR PVC Conduit Pipes Champion UPVC conduits pipes are available in the commercial market accepted sizes of 19mm, 25mm, 32mm. 40mm and 50mm with thickness of 1.0mm, 1.2mm, 1.5mm, 1.8mm and 2.0mm. Champion Conduit PVC Pipes are manufactured from a specially formulated polyvinyl chloride (PVC).
Which meet the Indian and International standards.
Nominal Area of Conductor | Number / Dia. of Wire | Thikness of Insulation (Nom.) | Approx. Overall Insulation (Nom.) | Current Carrying Capacity, # 2 Cable, Single Phase | Resistance (Max) per km @20 C as per IS:8130:2013 | |
In Conduit / TRunking | Directly to a surface of a cable tray | |||||
Sq. mm. | mm. | mm. | mm. | Amps. | Amps. | Amps. |
1.0 | 14 / 0.3 | 0.7 | 2.8 | 11 | 12 | 18.0 |
1.5 | 22 / 0.3 | 0.7 | 3.2 | 13 | 16 | 12.10 |
2.5 | 36 / 0.3 | 0.8 | 3.8 | 18 | 22 | 7.41 |
4.0 | 26 / 0.3 | 0.8 | 4.5 | 24 | 29 | 4.95 |
4.0 | 84 / 0.3 | 0.8 | 4.9 | 30 | 36 | 3.30 |

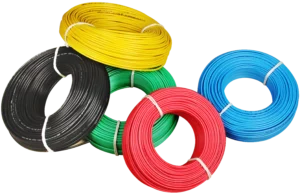

Savera Champion FRLS wires goes through rigorous tests to ensure the highest standards of quality. It is also backed by the ISI mark.
TEST | FUNCTION | SPECIFICATION | TYPICAL VALUES PVC | TYPICAL VALUES ORDINARY PVC INSULATED CABLES |
Critical Oxygen Index | To determine % of oxygen required for supporting combustion of insulation material at room temp. | ASTM-D 2863 | More than 29% | 23% |
Temperature Index | To determine at what temp., normal oxygen content of 21% in air will support combustion of insulation material | ASTM-D 2863 & BICC Handbook Chp. No. 6 | More than 250 C | 150 C |
Smoke Density (Light Transmission) | To determine the visibility (light transmission) under fire of insulation material | ASTM-D 2863 | More than 40% | 10 – 15% |
Acid Gas Generation | To ascertain the amount of Hydrochloric Acid gas evolved from insulation of cable under fire | IEC 754-1 | Less than 2% | 45-50% |

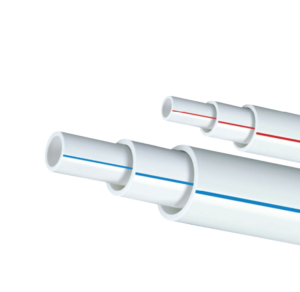

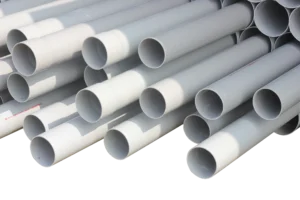

Available in ISI (IS:4985:2000)
4 KGF / CM2 (Sizes in mm) | 6 KGF / CM2 (Sizes in mm) | 10 KGF / CM2 (Sizes in mm) |
20 mm | ||
25 mm | ||
32 mm | ||
40 mm | 40 mm | |
50 mm | 50 mm | |
63 mm | 63 mm | |
75 mm | 75 mm | |
90 mm | 90 mm | |
110 mm | 110 mm | |
140 mm | 140 mm | |
160 mm | 160 mm | |
180 mm | 180 mm | |
200 mm | 200 mm | |
225 mm | 225 mm | |
250 mm | 250 mm | |
280 mm | 280 mm | |
315 mm | 315 mm | |
355 mm | 355 mm | |
400 mm | 400 mm |
Size in Inch (SCH 40) | Packing Per Bag |
1/2″ | 50 |
3/4″ | 40 |
1″ | 30 |
Size in MM |
75 |
110 |
PVC Braided Pipes is multi purpose hose, which can be used for air compressors, heavy duty water suction and delivery, conveying chemical and gases. It is a combination of flexible PVC Re-Inforced with Nylon Yarn. PVC braided pipes are produced using meticulously selected yarn, braided and fused between the inner and outer layers thus offering better resistance to withstand higher working pressures without the problem of bursting. A unique feature is its transparency which allows one to observe its internal functioning. It is resistant to several chemicals, alkalis, light acids and oils. It can withstand all climatic conditions thus proving a better choice than conventional rubber pipes.
A wide range of PVC braided pipes are available for use in various fields. Air/Pneumatic Pipes are ideal for Compressed air application and conveying chemicals and gases. Rock Drilling Pipes are used in marble, granite mining and tractor Mounted Compressors. Car Wash Pipes can be used in service station with a working pressure of 30/40 kg/cm2, they are oil resistant and abrasion resistant Super Spray Pipes are ideal for spraying pesticides, insecticides and weeding pesticides etc. Welding Pipes are ideal for oxy-acetylene welding purposes and cutting equipment in all types of industrial workshops, Ship building, Service station, PVC Garden/Water Pipes are suitable for all water delivery purposes like gardening, construction and irrigation. It is available from 6 mm to 50 mm sizes andin 30 mtr., 50 mtr. & 100 mtr. length.
RealOn Car-Washing hose are double braided & made of 100% oil resistant PVC Compound & braided with extra strong fine yarn to withstand working pressure upto 40 Kg/CM2. The outer surface of our hose is totally abrasion resistant which is suitable for washing vehicles in garages, service stations to withstand unavoidable oil, grease contamination.
Pneumatic hose in industry is understood to be a hose capable of conducting gasses at greater than atmospheric pressure. In mechanics, pneumatics is the application of pressurized gasses to perform work.
With the growing needs of the customers, we are engaged in offering a wide range of Rock Drill Hose Pipe. These Rock Drill Hose Pipes are highly appreciated for their quality and durability. These Rock Drill Hose Pipes has seamless finish and are smooth and uniform in thickness as well.
This hose is designed for portable or production line welding infactories, shipyards, construction work, etc. This hose is usedwith oxygen and most current fuel gases, including acetylene,hydrogen, propylene, propane, natural gas and MAPP®gas. Thetube is non-blooming. Meets or exceeds RMA/CGA IP-7-99standards for grade T, Type VD (vulcanized double) welding hose.
Brand & Product Specification | Size in MM (ID x OD) | Size in Inches | Working Pressure (KG / CM2) | Coil Length (Mtr) |
CHAMPION GOLD Use: Rock Drill / Pneumatic / Chemicals Color: Crystal Clear Transparent White | 8 x 16 | 5 / 16 | 30 | 100 |
19 x 28 | 3 / 4 | 24 | 100 / 60 | |
Use: Pneumatic / Chemicals / Water Color: Crystal Transparent White | 6 x 12 | 1 / 4 | 20 | 100 |
8 x 14 | 5 / 16 | 20 | 100 | |
10 x 16 | 3 / 8 | 18 | 100 | |
12.5 x 19 | 1 / 2 | 16 | 100 | |
16 x 22 | 5 / 8 | 13 | 50 | |
19 x 27 | 3 / 4 | 13 | 50 | |
25 x 33 | 1 | 13 | 50 | |
31.5 x 40 | 1 1/4 | 10 | 30 | |
38 x 47 | 1 1/2 | 10 | 30 | |
50 x 60 | 2 | 10 | 30 | |
CHAMPION PIPES Use: Air / Pneumatic / Water Color: Transparent Sky Blue | 6 | 1/4 | 18 | 100 |
8 | 5/16 | 18 | 100 | |
10 | 3/8 | 18 | 100 | |
12.5 | 1/2 | 16 | 100 | |
16 | 5/8 | 13 | 50 | |
19 | 3/4 | 11 | 50 | |
25 | 1 | 11 | 50 | |
31.5 | 1 1/4 | 10 | 30 | |
38 | 1 1/2 | 10 | 30 | |
50 | 2 | 10 | 30 | |
CAR WASH & SPRAY HOSE | 10 x 19 | 3/8 | 25 | 60 |
12 x 22 | 1/2 | 25 | 60 | |

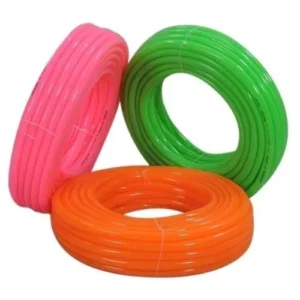

FLOWEL WATER GREEN HOSE | 12.5 | 1/2 | 7 | 100 |
19 | 3/4 | 7 | 50 | |
25 | 1 | 5 | 50 |
Size in MM | Size in Inches | Rolls / Bag | Length (Mtr) |
16 | 1/2 | 10 & 24 | 50 |
20 | 3/4 | 10 & 24 | 50 |
25 | 1 | 10 & 24 | 25 |
32 | 1 1/4 | 5 & 20 | 25 |
40 | 1 1/2 | 5 & 15 | 20 |
50 | 2 | 5 & 10 | 15 |

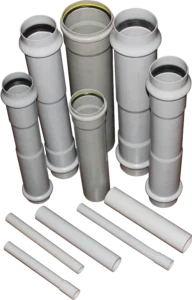

These pipes are made by our qualified professionals. Widely used for sanitary purpose and waste disposal as well as for water circulation
Size in MM | Size in Inches |
16 | 0.5 |
20 | 0.75 |
25 | 1 |
32 | 1.25 |
40 | 1.5 |
50 | 2 |
These pipes are made by our qualified professionals. Used as attachments to washing machines.
Size in MM | Size in Inches |
16 | 0.5 |
20 | 0.75 |
25 | 1 |
32 | 1.25 |
40 | 1.5 |
50 | 2 |
