PVC House Wires

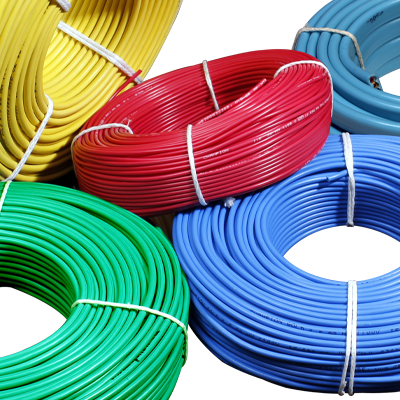

House Wires (FRLS)
Savera Group of Industries has introduced FRLS – Flame Retardant Low Smoke electrical cables which are manufactured by using electrolytic (EC) grade copper to ensure superior conductivity. Insulated with extra thick FRLS Insulating compound, Savera Champion FRLS has special flame retardant and low smoke emitting properties. During a fire, ordinary PVC insulated wires give out thick, black smoke and toxic fumes of hydrochloric acid gas. This impairs visibility and hampers rescue operations. Savera Champion FRLS, on the contrary, emits very little smoke and toxic gasses and also retards the spread of gas. It is thus ideal for concealed and conduit wiring in multi-storeyed buildings such as hotels, banks, hospitals, commercial & residential complexes, etc.
Features
- Abrasive Resistant PVC Compound Outer Coating
- Good Insulation properties for under water usage
- Excellent mechanical & electrical properties
Available Colours
Black
Avaliable Sizes:
|
Nominal Area of Conductor |
Number / Dia. of Wire |
Thikness of Insulation (Nom.) |
Approx. Overall Insulation (Nom.) |
Current Carrying Capacity, # 2 Cable, Single Phase |
Resistance (Max) per km @20 C as per IS:8130:2013 |
|
|
In Conduit / TRunking
|
Directly to a surface of a cable tray
|
|||||
|
Sq. mm.
|
mm. |
mm.
|
mm. |
Amps. |
Amps.
|
Amps. |
|
1.0 |
14 / 0.3 |
0.7 |
2.8 |
11 |
12 |
18.0 |
|
1.5 |
22 / 0.3
|
0.7 |
3.2 |
13 |
16 |
12.10 |
|
2.5 |
36 / 0.3 |
0.8 |
3.8 |
18 |
22 |
7.41 |
|
4.0 |
26 / 0.3 |
0.8 |
4.5 |
24 |
29 |
4.95 |
|
4.0 |
84 / 0.3 |
0.8 |
4.9 |
30 |
36 |
3.30 |
** As per Conductor class 5 of IS:8310, # As per IS 3961 (Part-V):1968
The FRLS Advantage
Savera Champion FRLS wires goes through rigorous tests to ensure the highest standards of quality. It is also backed by the ISI mark.
Avaliable Sizes:
|
TEST |
FUNCTION |
SPECIFICATION |
TYPICAL VALUES PVC |
TYPICAL VALUES ORDINARY PVC INSULATED CABLES |
|
Critical Oxygen Index |
To determine % of oxygen required for supporting combustion of insulation material at room temp. |
ASTM-D 2863 |
More than 29% |
23% |
|
Temperature Index |
To determine at what temp., normal oxygen content of 21% in air will support combustion of insulation material |
ASTM-D 2863 & BICC Handbook Chp. No. 6 |
More than 250 C |
150 C |
|
Smoke Density (Light Transmission) |
To determine the visibility (light transmission) under fire of insulation material |
ASTM-D 2863 |
More than 40% |
10 – 15% |
|
Acid Gas Generation |
To ascertain the amount of Hydrochloric Acid gas evolved from insulation of cable under fire |
IEC 754-1 |
Less than 2% |
45-50% |
